Common Signs of a Faulty AC Evaporator Explained and How to Fix Them

Published: 05 May 2025

Your evaporator works hard behind the scenes to keep your space cool, but the system can suffer when something goes wrong. From frozen coils to poor cooling, minor problems can lead to bigger headaches if left unchecked. That’s why it’s important to know what signs to watch for and how to take care of your evaporator before issues worsen.

In this section, I’ll discuss common problems you might face and share simple tips for keeping your system running smoothly all year. Ready? Let’s keep things cool and under control.

Table of Content

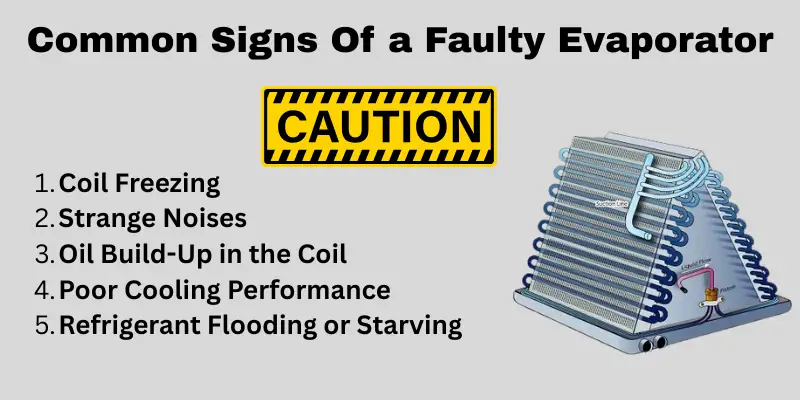

Common Signs Of a Faulty Evaporator

Evaporators work hard, but like any part, they can run into trouble. If something’s wrong with your cooling system, it might start with the evaporator. Here are a few common problems and what to watch for:

1. Coil Freezing

If the evaporator coil gets too cold, it can freeze up. You might see ice on the coil or feel weak airflow from your vents. This often happens when there’s not enough air flowing over the coil—maybe due to a dirty filter or blocked vent.

2. Poor Cooling Performance

Is your room not getting cold enough? That could mean the refrigerant isn’t flowing correctly through the coil. A clogged line, leak, or bad valve can stop the refrigerant from doing its job.

3. Strange Noises

Hissing, bubbling, or gurgling sounds might indicate a refrigerant leak or air trapped in the system. Clicking sounds could indicate parts struggling to work.

4. Refrigerant Flooding or Starving

Too much refrigerant (flooding) or too little (starving) can cause cooling problems. You might notice uneven temperatures or your system cycling on and off more than usual.

5. Oil Build-Up in the Coil

In large systems, oil can collect inside the evaporator. This blocks heat transfer and makes the system work harder, using more energy than it should.

What Are The Possible Reasons for Evaporator Failure

An evaporator doesn’t just fail without a reason. There’s usually a problem behind it. Here are the most common causes that can lead to evaporator failure:

1. Dirty or Clogged Coil

Dust, dirt, and grime build up on the coil over time. When that happens, the coil can’t absorb heat properly. This stresses the system and can cause the evaporator to freeze or stop working.

2. Poor Airflow

If not enough air is moving over the evaporator coil—because of a dirty air filter, blocked vent, or broken fan—the coil can get too cold and freeze, stopping the refrigerant from flowing like it should.

3. Low Refrigerant Levels

When refrigerant pressure is low (from a leak or improper fill), the pressure inside the coil drops. This can cause the coil to freeze, hurting performance and damaging the evaporator over time.

4. Corrosion

Over the years, moisture and chemicals in the air can eat away at the metal parts of the coil. This can cause tiny holes or cracks, leading to refrigerant leaks and reduced cooling power.

5. Oil Build-Up

In big systems, oil sometimes gets trapped inside the coil if the design doesn’t allow it to drain. Too much oil blocks heat transfer and can lead to failure.

6. Incorrect System Design

If the evaporator isn’t sized or appropriately installed for the system, it can wear out faster. A poor layout, uneven tubing, or the wrong coil type can all lead to early failure.

7. Lack of Maintenance

Skipping tune-ups or ignoring minor issues lets them grow. A neglected evaporator is more likely to develop serious problems that simple care could have prevented.

Maintenance Tips for Long-Term Efficiency

Want your cooling system to last longer and work better? Take care of the evaporator. Regular maintenance keeps it clean, efficient, and problem-free. Here’s how you can do that:

1. Clean the Coil Regularly

Dust and dirt love to stick to the evaporator coil. A dirty coil can’t absorb heat well, so your system must work harder. Use a soft brush or coil cleaner to wipe it down gently. If you’re unsure, a technician can do it safely.

2. Check for Ice or Frost

Look at the coil. If you see ice, it’s a warning sign. It might be due to a clogged air filter, low refrigerant, or poor airflow. Please turn off the system and let it thaw. Then check your filters and vents.

3. Inspect for Leaks

If your system isn’t cooling like it used to, there could be a refrigerant leak. You won’t always see it, but you might hear hissing or notice warm air blowing out. A pro can run a leak test and fix it.

4. Watch the Airflow

Make sure nothing is blocking the vents near your evaporator. Clean or change air filters every 1 to 3 months. Good airflow helps the evaporator do its job.

5. Schedule Seasonal Tune-Ups

Get your system checked by an HVAC technician before summer or winter. They’ll inspect the evaporator, test the pressure, and ensure everything’s running right.

Conclusion

Your evaporator works quietly, but it’s one of the most critical parts of your cooling system. Your comfort and energy bills take a hit when it runs into problems, like freezing, leaking, or poor airflow. The good news? Most issues can be avoided with a bit of care. Please keep it clean, check it often, and don’t skip seasonal checkups. A well-maintained evaporator means better cooling, fewer repairs, and a system that lasts longer.

Why is my evaporator coil freezing up?

Your coil might freeze due to low airflow, dirty filters, or refrigerant levels. When air can’t move over the coil properly, or the refrigerant pressure is too low, the coil gets too cold and freezes.

How do I know if my evaporator coil is bad?

Watch for signs like poor cooling, ice buildup, strange noises, or warm air from vents. If your system keeps turning on and off or struggles to stay cool, the evaporator might be the issue.

Can I clean the evaporator coil myself?

Yes, but be careful. Use a soft brush or a non-abrasive coil cleaner. Always turn off the power first. If you’re unsure, it’s best to let a professional do it safely.

How often should I clean or check my evaporator coil?

At least once a year, more often if your system runs a lot or you live in a dusty area. Regular cleaning helps your system run better and last longer.

What happens if I ignore evaporator problems?

Ignoring minor issues can lead to bigger, costly repairs. A bad evaporator can damage the compressor, reduce cooling, and raise energy bills. Catch problems early to save time and money.
