Types of Water-Cooled Condensers: Features, Pros & Cons by Type

Published: 18 May 2025

Welcome! If you’re working with cooling systems and you’re tired of high energy bills, noisy equipment, or systems that don’t keep up, I get it — choosing the right condenser feels like a headache. I’ve been there too, trying to figure out what works best without wasting money or time.

That’s why I’m breaking down the types of water-cooled condensers in easy words—so you can pick the right one to keep your system efficient, quiet, and reliable. Let’s clear the noise and get to what matters.

Ready to find the right fit? Let’s dive in.

Table of Content

Shell and Tube Condenser

A shell and tube condenser is built for reliability and high-capacity performance. It uses a bundle of straight copper tubes inside a cylindrical shell. Water flows through the tubes, while refrigerant circulates through them, allowing efficient heat transfer. This type is common in industrial chillers and systems dealing with high pressures.

A shell and tube condenser is often the go-to when you need something durable and built for heavy-duty performance. They’re instrumental in environments where maintenance access is essential and downtime needs to be minimized.

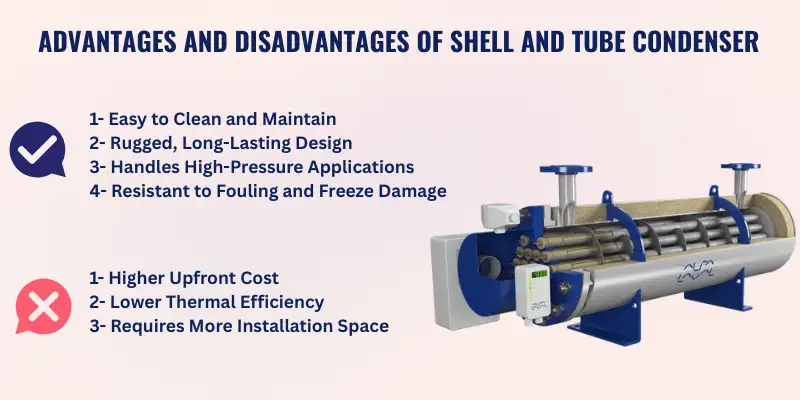

Advantages Of Shell and Tube Condenser

This type of condenser is favored in industrial setups for good reason. It offers durability, reliability, and ease of access—all key when managing large systems that can’t afford unexpected breakdowns. Here’s what makes it a strong performer:

1- Easy to Clean and Maintain

You can access and clean the tubes without dismantling the whole system. This saves time and maintenance costs, especially useful in environments where downtime is expensive.

2- Handles High-Pressure Applications

The design is built to withstand high internal pressures, making it a strong choice for industrial and large-scale HVAC systems.

3- Rugged, Long-Lasting Design

Made with thick tube walls and durable materials, these condensers are built to last, even in demanding environments with heavy usage.

4- Resistant to Fouling and Freeze Damage

Because of its wider tubes and robust construction, it’s less likely to clog or get damaged in low ambient temperatures, reducing risk in variable climates.

Disadvantages of Shell and Tube Condenser

While shell and tube condensers offer solid benefits, they aren’t the best fit for every scenario. There are a few drawbacks worth considering before making a final decision:

1- Requires More Installation Space

These condensers have a larger footprint, which can be a limitation if you work in a tight mechanical room or compact setup.

2- Higher Upfront Cost

They are more expensive to purchase and install than compact alternatives like brazed plate condensers.

3- Lower Thermal Efficiency

Due to their larger surface area and flow paths, they can be slightly less efficient in transferring heat compared to more compact, turbulence-inducing designs.

Shell and Coil Condenser

It comprises multiple thin metal plates stacked together, with a copper-based brazing material bonding them. The plates create narrow channels for water and refrigerant to flow through on opposite sides, allowing quick and effective heat transfer in a very compact design.

If you have limited space or want a more energy-efficient setup, the brazed plate condenser is a smart choice.

This type is commonly used in residential and commercial systems where tight space and high performance are still essential. It’s especially popular in modern, energy-conscious HVAC and refrigeration applications.

Advantages of Shell And Coil Condenser

Brazed plate condensers are all about efficiency in tight quarters. Their compact footprint and ability to transfer heat rapidly make them ideal for smaller setups where every inch counts.

1- Ideal for Tight Spaces

With a slim profile and small footprint, this condenser fits easily into compact systems without sacrificing performance, perfect for apartments, equipment rooms, or modular chillers.

2- Excellent Heat Transfer Efficiency

Thanks to the narrow flow channels and turbulent flow design, these condensers move heat quickly and efficiently, which boosts overall system performance and reduces energy use.

3- Corrosion-Resistant Build

Made from stainless steel plates with non-ferrous materials, they’re built to resist rust and corrosion, extending the lifespan even in moisture-heavy environments.

Disadvantages of Shell And Coil Condenser

Despite their efficiency, brazed plate condensers have a few downsides. If your system deals with hard water or needs regular cleaning, weigh these carefully.

1- Prone to Fouling

The narrow flow channels can easily become clogged with debris or scale, especially in areas with hard water or poor filtration. This can reduce efficiency and lead to failures.

2- Difficult to Clean Internally

Unlike shell and tube models, you can’t open a brazed plate condenser for manual cleaning. If fouling occurs, your only real option is chemical cleaning or full replacement in severe cases.

Coaxial (Tube-in-Tube) Condenser

It features two tubes—one nested inside the other. Water flows through one tube (usually the inner), while refrigerant flows in the opposite direction through the outer tube. This counter-flow design increases the temperature difference between the fluids, making heat transfer more effective.

If you’re looking for a balance between efficiency, durability, and compact design, the coaxial (tube-in-tube) condenser stands out.

Coaxial condensers are often used in systems with high temperature, high pressure, or low water flow conditions. They’re an excellent fit for applications where fouling is a concern and maintenance access is limited.

Advantages of Coaxial (Tube-in-Tube) Condenser

This type is well-suited for demanding environments where system reliability is critical and space is at a premium.

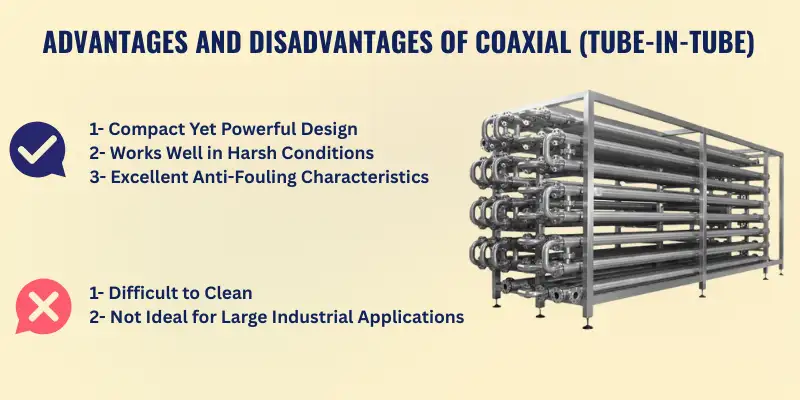

Advantages and Disadvantages Of Coaxial (Tube-in-Tube)

1- Compact Yet Powerful Design

Though more compact than shell-and-tube models, it still delivers strong heat transfer performance—ideal for packaged systems and mobile equipment.

2- Excellent Anti-Fouling Characteristics

The design helps reduce buildup inside the water channels, making it less prone to fouling, which is especially helpful in applications where water quality is inconsistent.

3- Works Well in Harsh Conditions

This condenser handles high temperature and high pressure environments better than most compact alternatives, offering flexibility across various applications.

Disadvantages of Coaxial (Tube-in-Tube) Condenser

While reliable and compact, this condenser type has a few practical limitations, especially around cleaning and cost.

1- Difficult to Clean

Unlike shell-and-tube types, you can’t mechanically clean the internal water passages. If fouling occurs, chemical cleaning is often your only option.

2- Not Ideal for Large Industrial Applications.

While it performs well in moderate systems, it may not scale efficiently for significant cooling needs like those in heavy industrial plants.

Conclusion

This article covered the three main types of water-cooled condensers: shell and tube, brazed plate, and coaxial. Each type was explained in terms of how it works, where it fits best, and what pros and cons to expect, so you can confidently match the right condenser to your cooling system.

If you’re ready to boost your system’s efficiency and eliminate guesswork, apply what you’ve learned here to your next project or upgrade. The right condenser setup isn’t just a choice—it’s an investment in long-term performance.

What is the most common type of water-cooled condenser?

The shell and tube condenser is the most widely used, especially in industrial and commercial HVAC systems. It’s known for its durability, high-pressure tolerance, and ease of maintenance.

Which water-cooled condenser is best for small spaces?

The brazed plate condenser is ideal for compact setups. Its slim, stacked-plate design makes it perfect for tight mechanical rooms, modular chillers, and residential systems with limited space.

What are the key differences between shell and tube vs. coaxial condensers?

Shell and tube condensers are bulkier but easier to clean and can handle larger capacities. Coaxial (tube-in-tube) condensers are more compact and better at resisting fouling, but they can be harder to clean and aren’t ideal for large-scale systems.

How do I choose the right type of water-cooled condenser?

It depends on your system’s size, pressure requirements, available space, and maintenance needs. For high capacity, go with a shell and tube. For efficiency in small spaces, choose brazed plates. For balance and fouling resistance, consider coaxial.
