EEVs Explained: How Does It Work? Advantages And Disadvantages | Common Issues

Published: 05 May 2025

Why is your HVAC system suddenly cooling unevenly? Why does it feel like your air conditioner takes longer to respond, or sometimes doesn’t? These are common problems, and in many modern systems, the answer points to a small but powerful part: the electronic expansion valve (EEV).

Unlike older valves that rely on mechanical movement, EEVs use smart electronic controls to manage how much refrigerant flows through your system.

In this guide, I’ll explain what an EEV is, how it works, and how it can make or break your HVAC or refrigeration system’s performance, without overloading you with technical jargon.

Table of Content

What Is an Electronic Expansion Valve (EEV)?

An electronic expansion valve, or EEV, is a smart component used in HVAC and refrigeration systems to control how much refrigerant flows into the evaporator coil. Traditional valves rely on mechanical movement or pressure changes to do this. However, an EEV takes a more advanced approach—it uses sensors and a small electric motor to adjust the valve opening with precision.

What Is an Electronic Expansion Valve And How Does It Work

This means the system can respond quickly to changes, keep cooling consistent, and reduce energy waste. EEVs are often used in newer, high-efficiency systems like VRF units, chillers, and heat pumps.

How Does an Electronic Expansion Valve (EEV) Work?

An EEV works by constantly adjusting the refrigerant flowing into the evaporator based on real-time system conditions. It uses a stepper motor—a tiny electric motor that moves in small steps—to open or close the valve precisely. The system’s sensors monitor temperature and pressure at different points, especially near the evaporator outlet. That data is sent to a controller, which tells the valve exactly how much to open or close. This keeps the refrigerant flow steady, protects the compressor, and helps the system run more efficiently, even when the load changes.

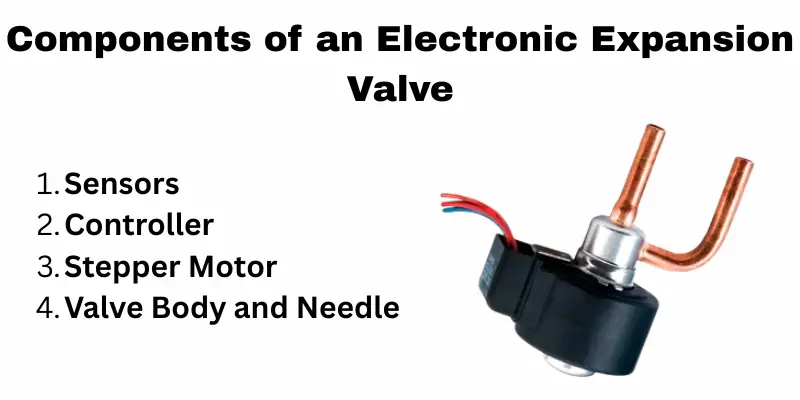

Components of an Electronic Expansion Valve

An EEV may look small, but it’s built with smart, coordinated parts that work together to manage refrigerant flow accurately. Here’s a breakdown of the key components:

Stepper Motor: This is the heart of the valve’s movement. It opens and closes the valve in tiny, precise steps, allowing the system to fine-tune the amount of refrigerant that flows through.
Controller: The controller acts like the brain of the EEV. It receives sensor signals and sends commands to the stepper motor based on real-time cooling demands.
Sensors: These include temperature and pressure sensors placed near the evaporator. They feed live data to the controller, allowing the system to adjust instantly.
Valve Body and Needle: This physical part opens and closes to allow or restrict refrigerant flow. The stepper motor directs the needle in and out of a seat to change the opening size.

Which Types of Systems use EEVs

Electronic expansion valves are designed for systems that demand high performance, energy efficiency, and precise temperature control. You’ll find EEVs in some of the most advanced HVAC and refrigeration setups. Here are the most common systems that rely on EEVs:

Variable Refrigerant Flow (VRF) Systems: VRF systems adjust cooling or heating across multiple indoor units. EEVs help manage refrigerant flow individually for each unit, making comfort more consistent and energy use more efficient.
Chillers: In large commercial buildings, chillers use EEVs to finely control refrigerant flow in real-time, which helps maintain steady cooling and reduces energy consumption.
Heat Pumps: Modern heat pumps—especially inverter-driven models—often use bidirectional EEVs that smoothly transition between heating and cooling modes.
Smart HVAC Systems: Systems with advanced control boards and remote monitoring features use EEVs for better diagnostics, automation, and precision performance tuning.

Advantages of Using EEVs

Electronic expansion valves bring precision and control that older mechanical valves can’t match. Here’s why more modern HVAC and refrigeration systems are switching to EEVs:

1- High Precision Control:

EEVs adjust refrigerant flow based on real-time data, which means the system only uses what it needs. This prevents overcooling or undercooling and leads to better overall performance.

2- Improved Energy Efficiency:

By matching refrigerant flow to system demand, EEVs help reduce energy waste. Over time, this leads to noticeable savings on energy bills, especially in systems that run year-round.

3- Fast Response to Load Changes:

When indoor or outdoor temperatures change quickly, EEVs react almost instantly. This helps keep the system balanced and prevents comfort issues like temperature swings.

4- Better Compressor Protection:

EEVs maintain stable superheat, ensuring only vapour, not liquid, reaches the compressor. This protects one of your system’s most expensive components from damage.

5- Support for Smart Systems:

EEVs work well with digital controllers, remote monitoring tools, and building automation systems, making them a natural fit for smart, connected HVAC designs.

Disadvantages Of Using EEVs

While electronic expansion valves (EEVs) offer clear performance benefits, they aren’t perfect for every situation. Before choosing an EEV, it’s essential to understand the potential drawbacks and what they mean for your system.

1- Higher Initial Cost:

EEVs cost more upfront than traditional valves like TXVs or capillary tubes. This includes the valve itself, sensors, and the electronic controller. The investment might not be worth the added complexity for smaller or simpler systems.

2- More Complex Setup:

Installing an EEV requires wiring, proper sensor placement, and controller configuration. If anything is set up incorrectly—like a misplaced sensor or reversed wiring—it can affect the system’s performance.

3- Sensitive to System Quality:

EEVs don’t tolerate moisture, debris, or refrigerant contaminants very well. If the system isn’t clean and properly sealed, the valve can stick or malfunction, leading to poor cooling or system faults.

4- Requires Skilled Technicians:

Troubleshooting an EEV isn’t as simple as checking a mechanical valve. It often involves electrical testing, software diagnostics, and interpreting sensor data—skills not every technician may have.

5- Compatibility Needs:

EEVs work best when paired with compatible controllers and system components. Retrofitting one into an older system may not always be possible without significant upgrades.

Signs of a Faulty EEV

When an electronic expansion valve isn’t working correctly, your HVAC or refrigeration system will show it—and often not in subtle ways. Catching these signs early can prevent larger system failures or costly repairs.

1- Inconsistent or Poor Cooling:

If rooms feel warmer than they should, or temperatures vary from one area to another, the EEV may not correctly regulate refrigerant flow.

2- Unstable Superheat Readings:

Fluctuating superheat levels are a key indicator of EEV issues. The valve may be overfeeding or underfeeding refrigerant, causing the system to perform inefficiently.

3- System Fault Codes or Alarms:

Many systems with EEVs are digitally controlled. If something goes wrong, you’ll likely see an error code related to valve movement, sensor failure, or refrigerant imbalance.

4- Unusual Noises:

Clicking, buzzing, or pulsing sounds can point to a stuck valve or a malfunctioning stepper motor inside the EEV.

5- Short Cycling or Delayed Startups:

If your system turns on and off too frequently or takes longer than normal to start cooling, the EEV may be stuck or responding too slowly.

Maintenance Tips for EEVs

Electronic expansion valves are designed for accuracy and long-term performance, but like any advanced component, they need proper care to keep working at their best. A few simple maintenance habits can help avoid breakdowns and extend the life of your system.

Inspect Electrical Connections: Ensure all wires to the EEV and its controller are secure, clean, and corrosion-free. Loose or damaged wiring can cause signal issues or prevent the valve from operating.
Check Sensor Accuracy: The valve relies on temperature and pressure sensors to make decisions. If a sensor gives bad data, even slightly, it can throw off the entire cooling cycle. Test sensors regularly to ensure they’re reading correctly and installed in the right locations.
Update Controller Software (if applicable): Some smart HVAC systems allow for firmware updates on the controller. These updates can improve response time, fix bugs, or adjust how the EEV handles certain conditions.
Monitor Refrigerant Quality: Dirt, moisture, or non-condensable gases in the refrigerant line can clog or damage the valve. Proper filter-drier and scheduling refrigerant checks can protect the EEV from internal buildup or sticking.
Include EEV Checks in Seasonal Service: Every time your system is serviced, especially before summer or winter, ensure the technician checks the EEV’s function, movement, and response time. Catching small issues early can prevent full system shutdowns later.

Conclusion

Electronic expansion valves (EEVs) may not be visible outside but significantly affect how well your HVAC or refrigeration system performs. They control refrigerant flow accurately, helping your system stay efficient, stable, and responsive to changing temperatures. From improving energy savings to protecting the compressor, EEVs bring modern intelligence to cooling systems that demand performance.

If you’re running a high-efficiency setup—or considering upgrading—knowing how an EEV works gives you a real advantage. And if your system shows signs of trouble, don’t ignore it. A quick inspection could save you time, money, and comfort.

What is the main function of an electronic expansion valve?

An EEV controls how much refrigerant enters the evaporator coil. It adjusts based on temperature and pressure readings, helping the system run efficiently and protecting the compressor from damage.

How do I know if my electronic expansion valve is bad?

Look for poor cooling, short cycling, frost buildup, odd noises (like clicking or buzzing), or error codes on your HVAC system’s control board. These are common signs that the valve may be stuck, clogged, or receiving bad sensor data.

What is EEV in a VRF System?

In a Variable Refrigerant Flow (VRF) system, an Electronic Expansion Valve (EEV) controls the flow of refrigerant to each indoor unit based on real-time cooling or heating demand. VRF systems often have multiple indoor units connected to one outdoor unit, and each zone can operate independently. The EEV adjusts the refrigerant flow precisely for each zone, ensuring that every room gets the exact amount of cooling or heating it needs.

This level of control makes VRF systems so energy-efficient, and the EEV is a key component behind that performance.

Can I replace an EEV with a TXV or capillary tube?

Not usually. EEVs are designed to work with electronic controls and sensors. Swapping one for a mechanical valve like a TXV requires system redesign, and it’s not recommended in most cases.

Are EEVs more efficient than TXVs?

Yes. EEVs provide more precise control over refrigerant flow and react faster to changing conditions. This can lead to better energy efficiency, especially in systems that experience varying loads.
