Refrigeration Cycle And Its Four Main Components Explained

Published: 20 May 2025

Hey there! You’re not alone if you’ve ever wondered why your fridge stays cold or how your air conditioner cools the room. I’ve seen so many people confused about how cooling systems work.

It all comes down to the refrigeration cycle — the engine behind every efficient HVAC system.

In this guide, I’ll walk you through how the refrigeration cycle works in a way that’s easy to follow, even if you’re not a tech expert.

So, if you’re finally ready to understand what’s happening behind the cool breeze, let’s dive in!

Table of Content

What is the Refrigeration Cycle?
Four main parts of the Refrigeration Cycle
The Step-by-Step Process of the Refrigeration Cycle
Conclusion

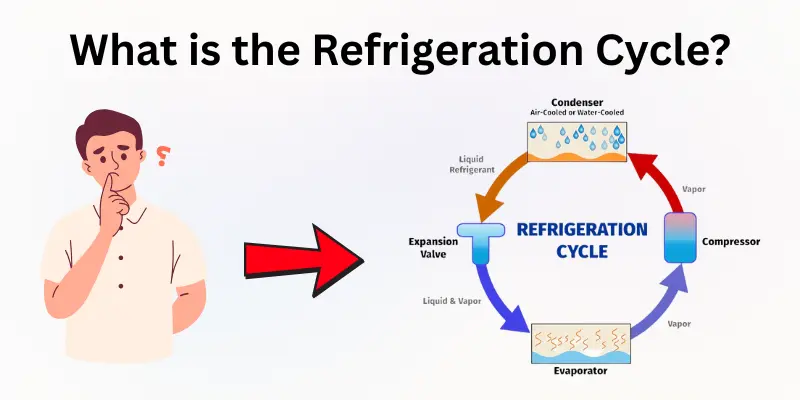

What is the Refrigeration Cycle?

The refrigeration cycle is a step-by-step process used in machines like fridges and air conditioners to move heat from one place to another. It takes warm air from inside and pushes it outside, helping things stay cool.

That’s not the whole picture, but the basic idea of how heat gets around in a cooling system. Now, let’s talk about the main parts that perform this process.

Four main parts of the Refrigeration Cycle

There are other small parts in most HVAC cycles, but almost everyone agrees that the four most essential components in a basic refrigeration cycle are:

Compressor – pushes the refrigerant through the system
Condenser – removes heat from the refrigerant and changes it from a gas to a liquid.
Expansion Device – lowers the pressure and cools the refrigerant.
Evaporator – absorbs heat and turns liquid back into gas.

The Step-by-Step Process of the Refrigeration Cycle

Now, you understand the main parts. Let me walk you through how the refrigeration process works, step by step. This is where you’ll see how these parts do their job!

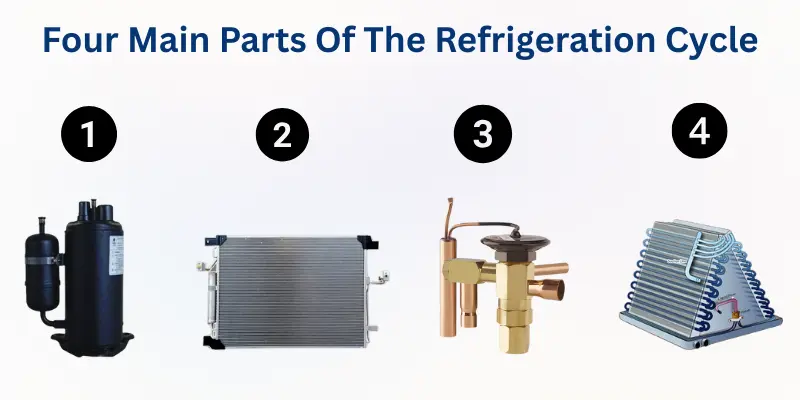

Four Main Parts Of The Refrigeration Cycle

1. Compressor – The Starting Point of the Cycle

The refrigeration cycle begins with the compressor, which is essential for initiating the process. It starts by pulling in refrigerant as a low-pressure gas from the evaporator. Then, it compresses this gas, creating high-pressure and high-temperature conditions. You can think of the compressor as the part that gives power to start the cooling process. Without it, the refrigerant wouldn’t move at all.

Once compressed, the hot gas flows to the next component—the condenser—where it cools down. This is how the cycle begins; everything else follows from this powerful push.

2. Condenser – The Heat Remover

After the refrigerant exits the compressor as a hot, high-pressure gas, it enters the condenser. The condenser is usually on the back of your fridge or outside an air conditioning unit. Here, the refrigerant releases heat into the surrounding air. As it loses heat, it changes from a gas to a liquid. This process is called condensation, like when steam turns into water on a cold surface.

When it leaves the condenser, the refrigerant is much cooler and a high-pressure liquid. It’s ready to move into the expansion device.

3. Expansion Device – The Pressure Dropper

The next stop is the expansion device, often called an expansion valve or capillary tube. This part is small but mighty. It removes the high-pressure liquid refrigerant from the condenser and allows it to expand quickly, lowering both its pressure and temperature. The sudden drop causes the refrigerant to become much colder. This low-pressure, cool liquid is now ready to absorb heat.

Without this step, the refrigerant would still be too warm to cool the system effectively. Once it passes through the expansion valve, it flows straight into the evaporator, where the magic of cooling happens.

4. Evaporator – The Cooling Hero

The cold, low-pressure liquid refrigerant enters the evaporator, typically located inside your refrigerator, freezer, or air conditioning unit. Inside the evaporator, the refrigerant absorbs heat from the surrounding air. As it absorbs the heat, it boils and turns back into a gas, much like water turns into steam.

This process cools the air around it, which is how your food stays fresh or your room feels cool. The now warm, low-pressure gas returns to the compressor, and the refrigeration cycle starts again.

Conclusion

Now that you know how the refrigeration cycle works, you’ll never look at your fridge or air conditioner the same way again. I’ve walked you through each step — from the compressor starting the cycle, to the evaporator finishing the job by cooling the air around you.

You’ve seen how each part plays a role in moving heat out and bringing in cool air. Whether you’re learning this for school, for fun, or to understand your home’s cooling systems better, this knowledge puts you ahead.

Understanding these basics can help you identify issues early, conserve energy, and optimize your HVAC system.

If you found this guide helpful, share it with a friend or bookmark it for later. Do you have questions? Drop them in the comments—I’d love to hear from you!

What is the refrigeration cycle in simple words?

The refrigeration cycle is used in refrigerators and air conditioners to remove heat from one place and transfer it elsewhere. It helps things stay cold by using a special gas called refrigerant.

What are the four main parts of the refrigeration cycle?

The four main parts are the compressor, condenser, expansion device, and evaporator — each playing a key role in moving heat and keeping things cool.

How does the refrigeration cycle work in an HVAC system?

In an HVAC system, the refrigeration cycle works by absorbing heat from inside your home and releasing it outside. This cools the air inside while keeping your space comfortable.

Can the refrigeration cycle work in reverse?

Yes! When reversed, the system acts like a heat pump. Instead of cooling, it brings warm air inside, perfect for cold weather.

Why is my cooling system not working properly?

If your fridge or AC isn’t cooling well, it could be due to dirty coils, low refrigerant, or a problem with the compressor. Regular maintenance can help prevent these issues.
